MMC-ACT-002
High Power, Light Weight

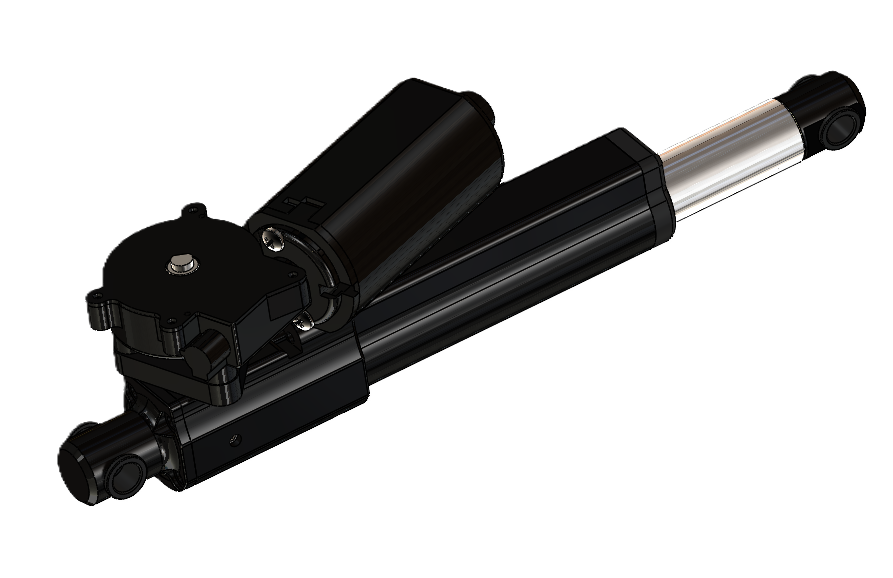

The MMC ACT-002 is a compact, high-power actuator with a Ø43 motor, delivering up to 6 kN push force and 4 kN pull force. The ACT-002 is approximately 500 g lighter than comparable actuators and the optimized gear and bearing designs provide a 30% improvement in load capacity despite its smaller and lighter form factor.
The ACT-002 is available in several configurations. Please contact us for more detailed information.
Key Features
Max. push force
6000
N
Max. pull force
4000
N
Stroke lengths
40
-
400
mm (customizable)
Minimum build-in length excl. stroke
140
mm
Motor
24VDC
IP class
IPX4
Housing
Aluminium
Piston
Stainless Steel
Color
Black
